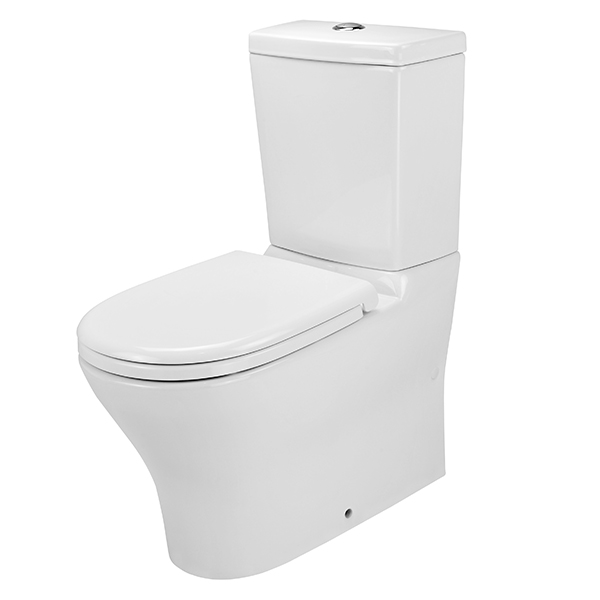

Ravelle Wall Faced Toilet



Size: 680*355*830



Flush capacity:4.5/3.0 LPF 4 Star WER



Outlet:



Short P with adjustable pan connection bend for floor outlet



Drainage:



Wall outlet 185mm nominal



Floor outlet variable to 280mm



S-Trap: 100-160-225  P-Trap: 185mm

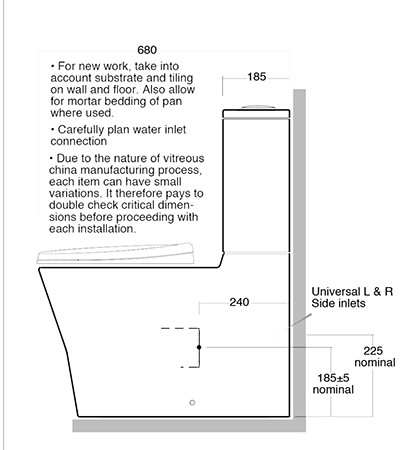

See set out drawing



Water inlet supply:



Universal -Rear LH water inlet



Bottom Side inlet LH or RH water inlet



Projection:



Wall into room 670+/-5mm



Height 825+/-5mm



Seat: Soft close seat for residential



Standard: Complies to AS1172.1 and AS1172.2



WELS license:#0016



All dimensions are nominal.



Note: Please check the exact size before installation.
