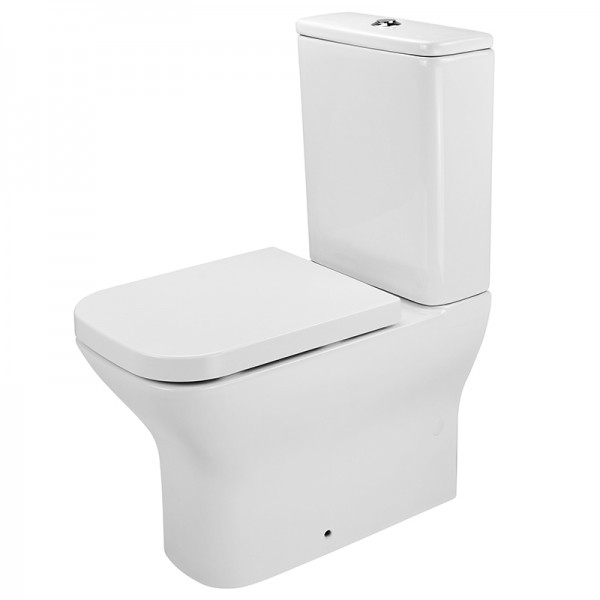

Luxx Wall Faced Toilet



Size: 615*350*845



Flush capacity:4.5/3.0 LPF 4 Star WER



Outlet: Short P with adjustable pan connection bend for floor outlet



S-Trap: 90-160-230mm  P-Trap: 185mm



Drainage

:

Wall outlet 185mm nominal



Floor outlet variable to 280mm



See  set out drawing



Water inlet supply:



Universal -Rear LH water inlet



Bottom Side  LH & RH water inlet



Projection:



Wall into room 610mm



Seat: Soft close seat for residential



Standard: Complies to AS1172.1 and AS1172.2



WELS license:#0016



All dimensions are nominal.



Note: Please check the exact size before installation.
